RG50-CAL-AP

4” Ballistic Glass

Learn More

RG50-CAL-B

3” Ballistic Glass

Learn More

RG7

1-7/8” Ballistic Glass

Learn More

RG5 MH

1-7/16” Ballistic Glass

Learn More

AP 125MS

Multi Shot Protection

Learn More

AP 125

Ballistic Glazing - Level 3

Learn More

AP 100

Ballistic Glazing - Level 2

Learn More

AP 75

Ballistic Glazing - Level 1

Learn More

AP 50

Containment Grade Sheet

Learn More

AP 375

Containment Grade Sheet

Learn More

AP 25

AR Polycarbonate Sheet

Learn More

RG5

1-3/8” Ballistic Glass

Learn More

RG4

1-1/8” Ballistic Glass

Learn More

RG3

15/16” Ballistic Glass

Learn More

RG2

13/16” Ballistic Glass

Learn More

J Series

Ballistic & Forced Entry Grade Sub-framing

Learn More

AG Series

Ballistic All-Glass Doors

Learn More
Our Solutions

Riot Glass® retrofit systems consist of custom-made security glass and framing designs that provide maximum protection against forced entry and ballistic threats.

view security solutions

Forced Entry

Virtually unbreakable retrofit solutions

Learn More

Bulletproof Protection

Ideal protection against active shooters

Learn More

Hurricane & Windstorm

Great protection against storm damage

Learn More

Energy Efficiency

Sustainable, reliable and affordable Low-E solutions

Learn More

Blast Mitigation

Security window film to a complete retrofit

Learn More

Sound Attenuation

Window glazing ideal for blocking external noise

Learn More
Our Clientele

Riot Glass® can be used to secure any building. Virtually invisible yet nearly indestructible, it blends seamlessly in almost any existing window, door, or
storefront.

see more

Rating Charts

Armorplast® and Riot Glass®

ArmorPlast® is designed to resist penetration in UL752 Levels 1, 3 and 6. Our retrofit framing allows us to install the ArmorPlast® into your existing framing to significantly reduce costs and downtime.

Riot Glass® is a full line of ballistic glass available in single and dual pane options. We have ballistic makeups in UL752 Levels 1-8. We custom make each order and you can choose upgrades including low-E, low iron, privacy mirrored tint, low spall and no spall options.

UL 752 Ballistic Levels and GSA Blast Performance Conditions

Underwriters Laboratories and the U.S. General Services Administration (GSA) provide testing standards for the rating of ballistic and blast mitigation products. Below are the reference guides that designate performance levels for ballistic and blast solutions based on perceived threats.

UL 752 pdf Chart
Ammunition Legend:
FMCJ - Full Metal Copper Jacket
LC - Lead Core
JLSP - Jacketed Lead Soft Point
LSWC - Lead Semi-Wadcutter
GC - Gas Checked
LCSP - Lead Core Soft Point
LPF - Lead Point Filler
FMJ - Full Metal Jacket
FPS - Feet Per Second

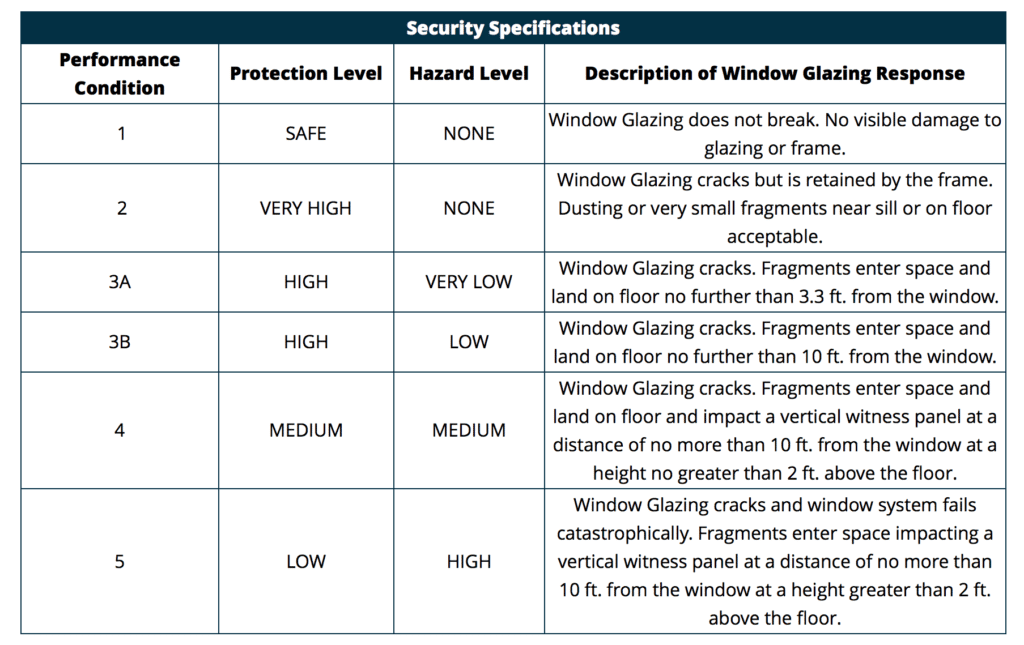

Security Specifications

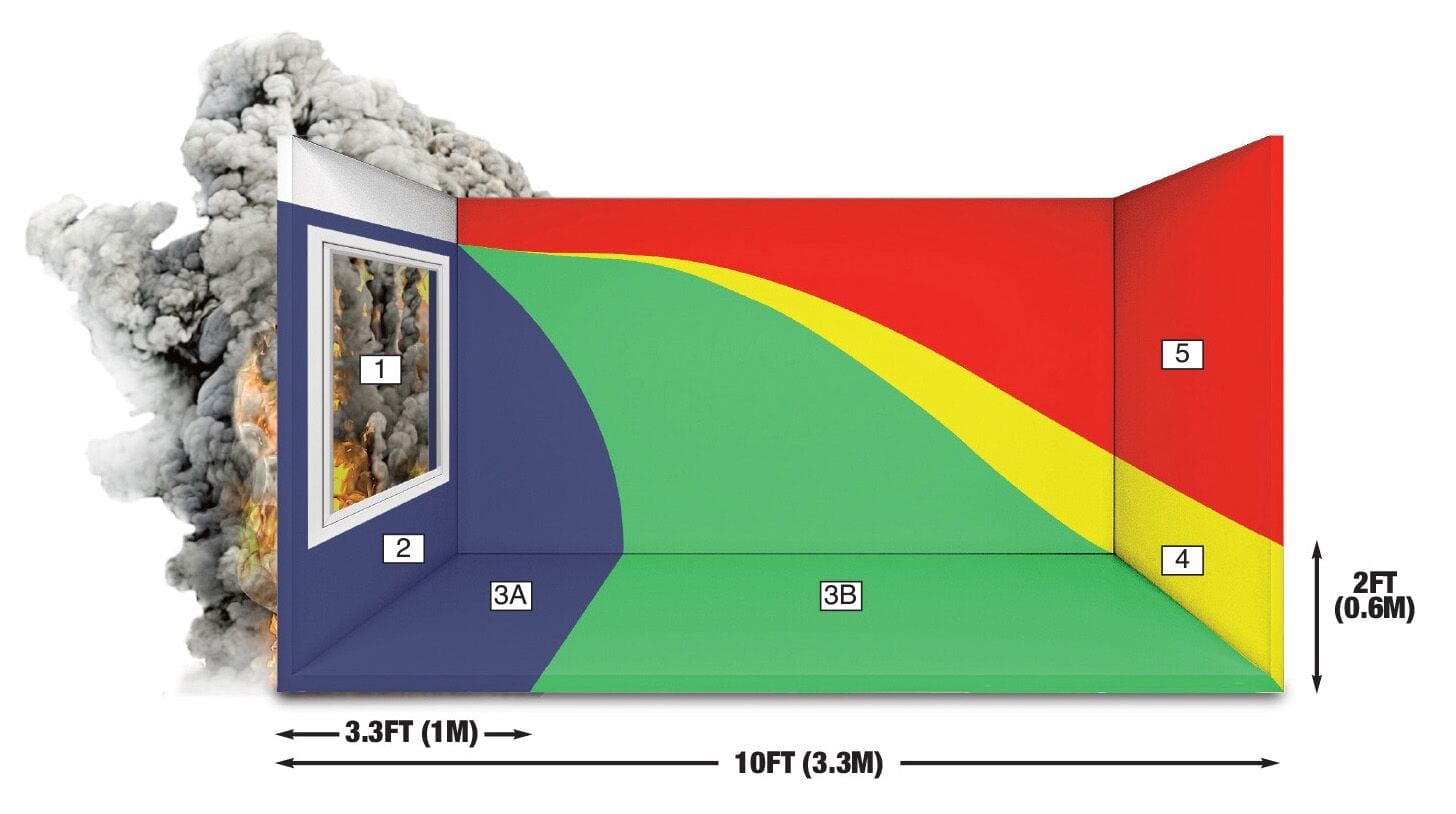

This diagram explains what the various performance conditions represent and depicts the testing chamber used for testing bomb blast mitigation solutions. The room is 10-feet deep, and there is a witness panel on the back wall for detecting debris.

If the window shatters during the test and the failure is significant enough, there will be glass shards embedded in the witness panel.

Protection Level: SAFE

Response: Window Glazing does not break. No visible damage to glazing or flame

Protection Level: VERY HIGH

Response: Window Glazing cracks but is retrained by the frame. Dusting or very small fragments near sill or on floor acceptable.

Protection Level:HIGH

Response: Window Glazing cracks. Fragments enter space and land on floor no further than 3.3ft from the window.

Protection Level: HIGH

Response: Window Glazing cracks. Fragments enter space and land on floor no further than 10ft. from the window.

Protection Level: MEDIUM

Response: Window Glazing cracks. Fragments enter space and land on floor and impact a vertical witness panel at a distance of no more than 10ft. from the window at a height no greater than 2ft. above the floor.

Protection Level: LOW

Response: Window Glazing cracks and window system fails catastrophically. Fragments enter space impacing a vertical witness panel at a distance of no more than 10ft from the window at a height greater than 2ft above the floor.

Window Film Blast Mitigation Test

We used a live “shot” to test the blast performance of a window film system. Riot Glass Inc. produces blast-resistant glass and framing systems for new construction, as well as security film retrofits for existing glass to remain in place.

Our window films are a cost-effective solution and work very well for blast mitigation, as you can see here.

Shock Tube Test

This video shows an indoor blast chamber for product testing known as a shock tube. Our Riot Glass® security film was tested by our Los Angeles-based installation dealer, Campbell Window Film.
